DAN
DBN
DSN
DUN
- Available Size : 9.5Ø/12.7Ø/14Ø
-
| Model | Description | ||

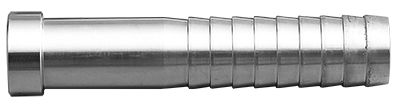

| DAN series | 32mm(1 1/4") hose entry. Aluminum outer jacket. Tungsten carbide liner. | ||
| Model | Orifice | Length | Entry |
| DAN-9.5 | Ø9.5mm(3/8") | 170mm(6.7") | 32mm(1 1/4") |
| DAN-12 | Ø12mm(1/2") | 170mm(6.7") | 32mm(1 1/4") |
| DAN-14 | Ø14mm(5/8") | 170mm(6.7") | 32mm(1 1/4") |
| Model | Orifice | Angle | Thread |
| DAN-60º | Ø12mm(1/2") | 60º | 50mm(2") |
| Description | |||
| Coupled to Nozzle Holder. Aluminum outer jacket. Tungsten carbide liner. | 38mm(1 1/2") or 48mm(2") hose entryAluminum outer jacket. Tungsten carbide liner. | ||
| Model | Orifice | Length | Thread |

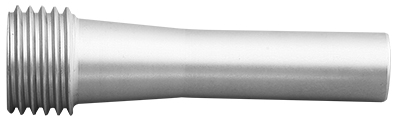

| DBN-12 | Ø12mm(1/2") | 170mm(6.7") | 42mm(PF 1-1/4") |

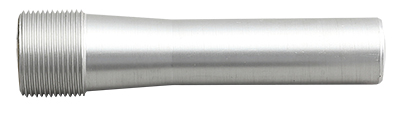

| DSN-12 | Ø12mm(1/2") | 170mm(6.7") | 50mm(2") |
| Model | Description | ||

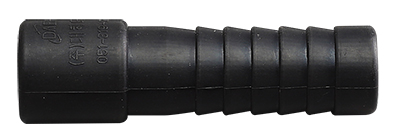

| DUN series | 32mm(1 1/4") hose entry. Urethane outer jacket. Tungsten carbide liner. | ||
| Model | Orifice | Length | Entry |
| DUN-9.5 | Ø9.5mm(3/8") | 130mm(5") | 32mm(1 1/4") |
| DUN-12 | Ø12mm(1/2") | 130mm(5") | 32mm(1 1/4") |
| DUN-14 | Ø14mm(5/8") | 130mm(5") | 32mm(1 1/4") |
